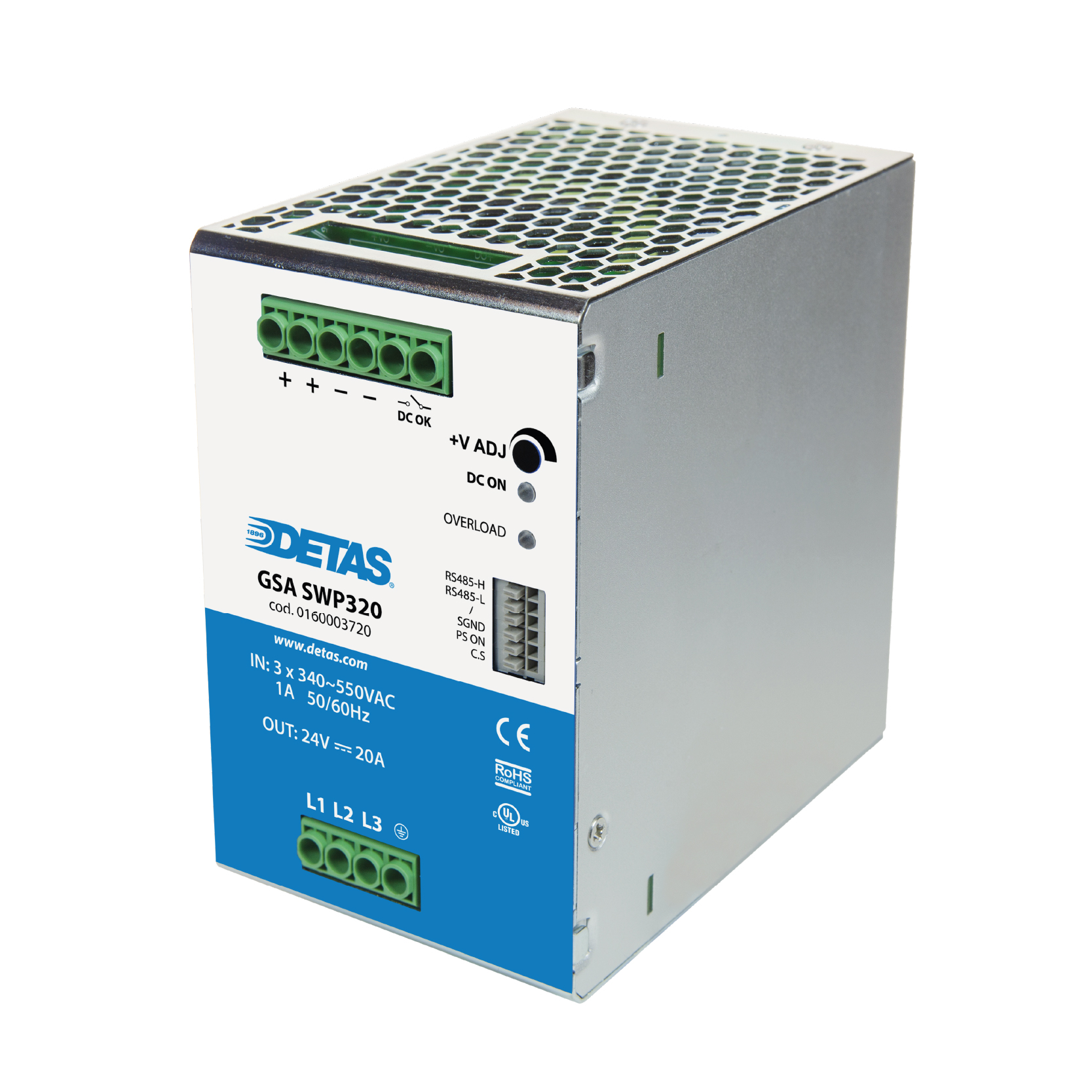

GSA SWP320/24 340–550 VAC/24 VDC 20 A Two- and Three-Phase Power Supply

Availability: Available

Code: 0160003720

€139.00, including VAT

- +

Input voltage with a wide operating range: 2- or 3-phase 340–550 VAC (480–780 VDC).

Ultra-compact dimensions (80 mm wide).

A 150% overload of the rated power for 5 seconds.

High efficiency of up to 95% with active PFC.

Can be connected in parallel to increase power or for redundancy.

Low inrush current at startup.

Operating temperature: -30°C to +70°C.

SELV system.

High I/O insulation voltage up to 4,000 VAC.

Fault alert function (DC OK) and RS485 communication.

Input voltage: 350 VAC ÷ 550 VAC

Output voltage: 24 VDC

Output current: 20 A

Output power: 480 W

Mounting type: Barra DIN

Connection type: Morsetti a Vite

Dimensions (mm): 80 x 127 x 124 mm

Weight (g): 1.150 g

Case material: Metal
