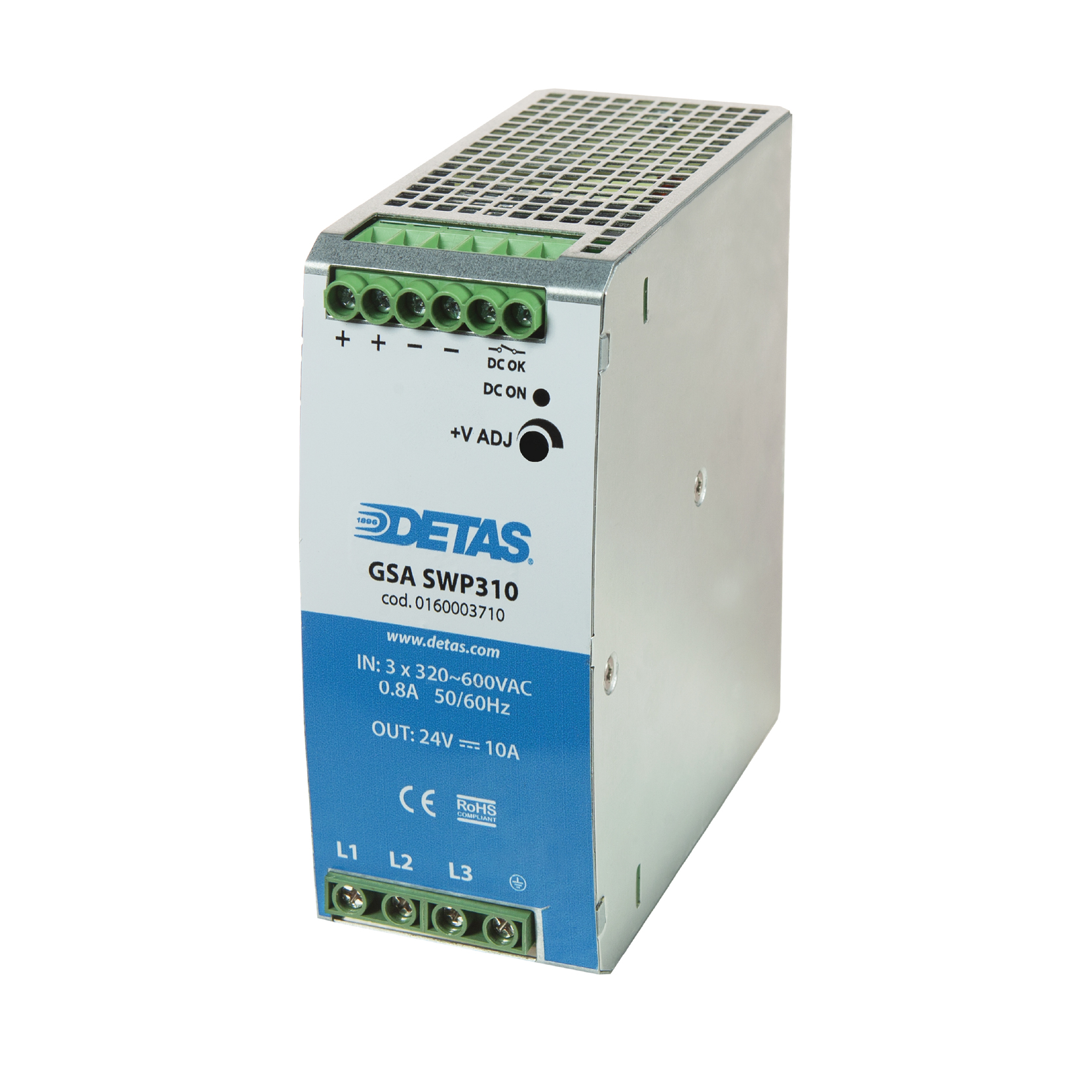

GSA SWP310/24 320–600 VAC/24 VDC 10 A Two- and Three-Phase Power Supply

UL-certified three-phase power supply (also operates in two-phase mode), 24 VDC, 10 A, with PFC

Availability: Available

Code: 0160003710

€82.60, including VAT

- +

GSA SWP310/24 320–600 VAC/24 VDC 10 A Two- and Three-Phase Power Supply

Absolute values: 320–600 VAC (450–850 VDC).

A 150% overload of the rated power for 5 seconds.

High efficiency of up to 92%.

Ultra-compact dimensions.

Operating temperature: -30°C to +70°C.

SELV system.

High I/O insulation voltage up to 4,000 VAC.

Rated input voltage: 340 VAC ÷ 550 VAC

Output voltage: 24 VDC

Output current: 10 A

Output power: 240 W

Mounting type: Barra DIN

Connection type: Morsetti a Vite

Dimensions (mm): 54 x 110 x 124 mm

Weight (g): 750 g

Case material: Metal
